BECODISC BS

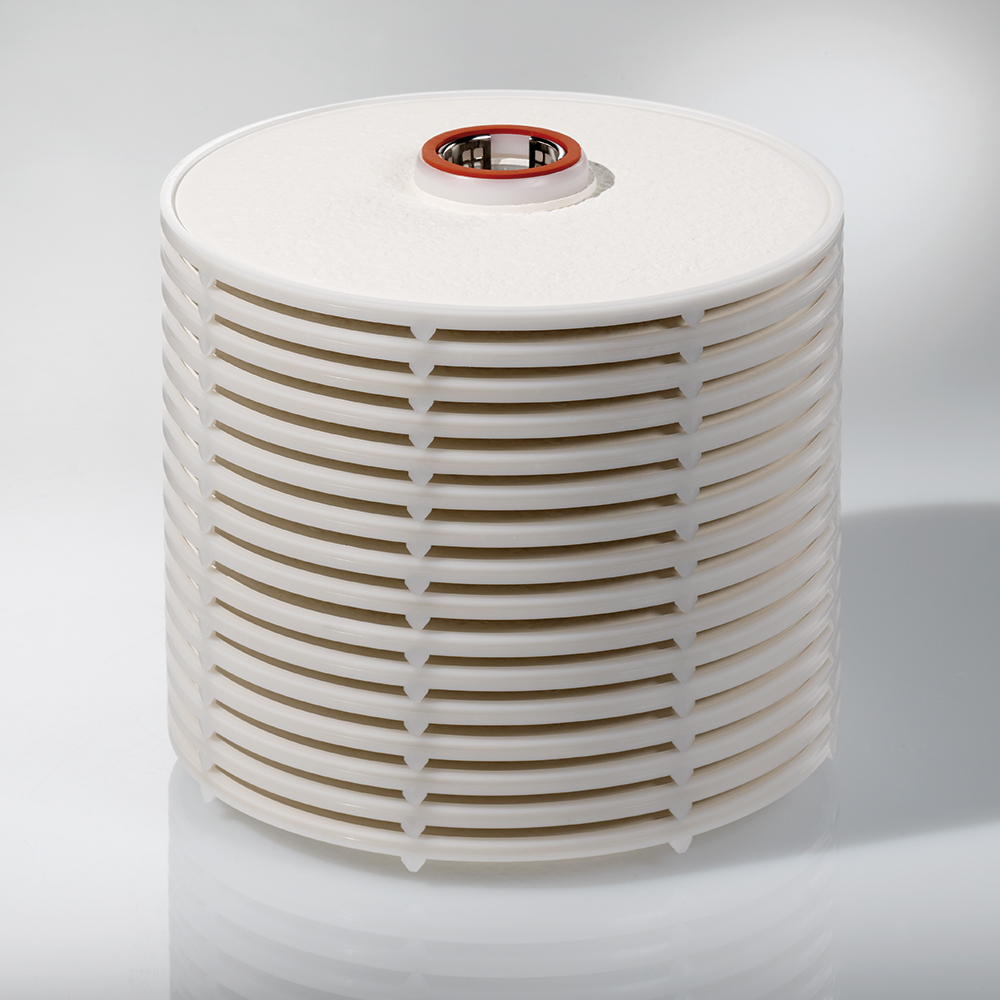

Eaton’s BECODISC BS stacked disc cartridges have superior clarification performance for reliable removal from particles to microorganisms due to optimal pore structure and adsorption. These filter sheets cover filtration grades from 4.0 µm to 0.1 µm nominal rating in applications such as beer, biotechnology, cosmetics, food, fruit juices, wine and more.
FILTER MATERIAL
Cellulose with mineral components
RETENTION
Coarse, clarifying, fine filtration; Microbial reduction and removal
MAX. OPERATING TEMPERATURE
FDA, EC1935/2004
Core features
- Ideal pore structure for reliable retention of the components to be separated
- Use of high-quality raw materials for high clarification performance
- Economic service life through high dirt-holding capacity
- Comprehensive quality control of all raw and auxiliary materials
- In-process monitoring ensures consistent quality
Applications
- Beer
- Fruit juice
- Spirits
- Food
- Fine and Specialty Chemistry
- Biotechnology
- Pharmaceutical
- Cosmetics
SPECIFICATIONS
| Type | Depth filter sheet | Nominal retention rate µm | Water throughput p = 14.5 psi gpm/ft2 (△ p = 100 kPa l/m2/min) | Thickness in (mm) |
| B01S | BECO Steril S 100 | 0.1 | 0.7 (30) | 0.15 (3.9) |
| B02S | BECO Steril S 80 | 0.2 | 1.1 (46) | 0.15 (3.9) |
| B03S | BECO Steril 60 | 0.3 | 1.5 (60) | 0.15 (3.8) |
| B04S | BECO Steril 40 | 0.4 | 1.7 (69) | 0.15 (3.8) |
| B05S | BECO SD 30 | 0.5 | 2.1 (84) | 0.15 (3.8) |
| B06S | BECO KDS 15 | 0.6 | 2.8 (115) | 0.15 (3.8) |
| B08S | BECO KDS 12 | 0.8 | 3.8 (155) | 0.15 (3.8) |
| B10S | BECO KD 10 | 1.0 | 4.5 (185) | 0.15 (3.8) |
| B15S | BECO KD 7 | 1.5 | 5.5 (225) | 0.15 (3.8) |
| B20S | BECO KD 5 | 2.0 | 6.6 (270) | 0.15 (3.8) |
| B25S | BECO KD 3 | 2.5 | 10.4 (425) | 0.15 (3.8) |
| B30S | BECO K2 | 3.0 | 38.0 (1550) | 0.15 (3.8) |
| B40S | BECO K1 | 3.8 | 46.6 (1900) | 0.15 (3.8) |
