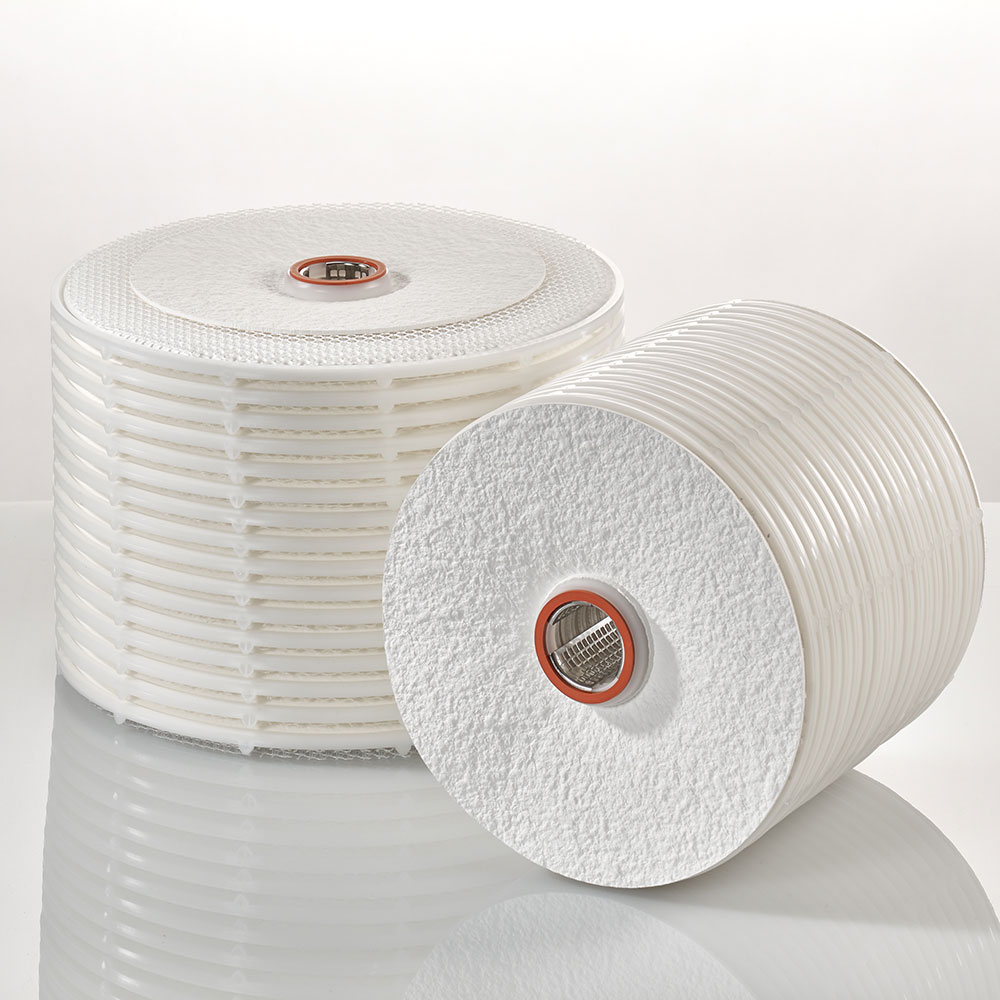

BECODISC R+
Backflushable, extra robust BECODISC R+ stacked disc cartridges with BECOPAD premium depth filter sheets are characterized by maximum purity. They can be used for filtration of liquids in food, beverage, cosmetic or fine chemical industries. Application options range from coarse filtration to microbial removal filtration. Users can increase the filter service life considerably by backflushing.
FILTER MATERIAL
High-purity Cellulose
RETENTION
Coarse, clarifying, fine filtration; Microbial reduction and removal
MAX. OPERATING TEMPERATURE
FDA, EC1935/2004
Core features
- Increased service life due to possibility of backflushing
- Very high robustness due to the special design
- Optimized flow distribution upstream and downstream of the filter sheets maximizes filter utilization
- Combines all advantages of BECOPAD filter material
- No use of an additional backflush set is required
SPECIFICATIONS
| Type | BECOPAD Depth filter sheet | Nominal retention rate µm | Water throughput △ p = 14.5 psi gpm/ft2 (△ p = 100 kPa l/m2/min) | Thickness in (mm) |
| B1C6 | 115 C | 0.1 – 0.2 | 0.6 (26) | 0.16 (4.1) |
| B176 | 170 | 0.2 – 0.4 | 1.9 (77) | 0.15 (3.9) |
| B226 | 220 | 0.3 – 0.5 | 2.5 (100) | 0.15 (3.9) |
| B276 | 270 | 0.5 – 0.7 | 3.3 (135) | 0.15 (3.9) |
| B356 | 350 | 0.7 – 1.0 | 3.9 (160) | 0.15 (3.9) |
| B456 | 450 | 1.0 – 2.0 | 7.4 (300) | 0.15 (3.9) |
| B556 | 550 | 2.0 – 3.0 | 14.0 (570) | 0.15 (3.9) |
| B586 | 580 | 8.0 – 10.0 | 87.6 (3571) | 0.15 (3.9) |
